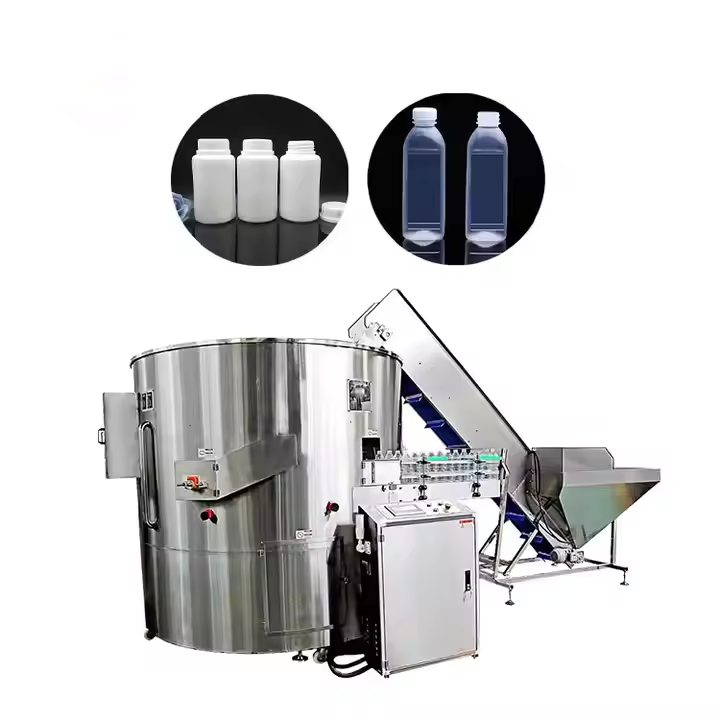

Automatic High Speed PET Bottle Rotary Unscrambler Machine /pet pp Bottle Sorte
Automatic High Speed PET Bottle Rotary Unscrambler Machine /pet pp Bottle Sorte
Automatic High Speed PET Bottle Rotary Unscrambler Machine /pet pp Bottle Sorte
- Detail
- Parameters
Key attributes
Introduction
The function of the high-speed bottle unscrambler is that the high-speed bottle unscrambler manually adds materials to the storage bottle bin for storage. The materials in the storage bottle bin will be automatically quantified and fed to the turntable at a set speed. The turntable rotates at high speed to release the bottles as required. When feeding out, the webbed wheel removes irregular bottles, and the bottle sorting part sends the bottles fed out by the turntable to the bottle sorting part at a certain speed.
Improve the organization
l Stainless steel support feet;
l Stainless steel large-capacity hopper with bottle-free alarm and cap opening functions;
l The acrylic cover of the storage hopper can be opened and closed automatically, which is convenient for workers to add materials and is dust-proof;
l AISI304 stainless steel shell;
l Engineering plastic conveyor belt meets GMP requirements. Bottle unpacking mechanism
l The bottles enter the bottle unscrambler turntable from the lifting mechanism, and the turntable rotates at high speed to sort
out the bottles as required;
l The webbed wheel removes irregular bottles;
l The technology of automatic quantitative feeding to the turntable is adopted to maintain the dynamic balance of the number of
bottles in the unscrambler tray to ensure stable and continuous bottle discharging.
Bottle delivery mechanism
l Clamp the bottles through the conveyor belts on both sides and transport them to the working surface of the conveyor;
l Sort out the bottles through different bottle turners;
l The conveyor belt complies with GMP and FDA standards and requirements and adopts flexible buffering to facilitate bottle turning;
l Single motor drives double pulley structure to ensure consistent speed of the two clamping belts.
Bottle discharging mechanism
l When the clamping belt sends out bottles, its speed is consistent with the speed of the main conveyor belt, and bottles will not fall over;
l The conveyor belt complies with GMP and FDA standards and requirements and adopts flexible buffering to facilitate bottle turning;
l Single motor drives double pulley structure to ensure consistent speed of the two clamping belts;
l The clamping belt speed is adjustable through frequency conversion.
Improve the organization
l Stainless steel support feet;
l Stainless steel large-capacity hopper with bottle-free alarm and cap opening functions;
l The acrylic cover of the storage hopper can be opened and closed automatically, which is convenient for workers to add materials and is dust-proof;
l AISI304 stainless steel shell;
l Engineering plastic conveyor belt meets GMP requirements. Bottle unpacking mechanism
l The bottles enter the bottle unscrambler turntable from the lifting mechanism, and the turntable rotates at high speed to sort
out the bottles as required;
l The webbed wheel removes irregular bottles;
l The technology of automatic quantitative feeding to the turntable is adopted to maintain the dynamic balance of the number of
bottles in the unscrambler tray to ensure stable and continuous bottle discharging.
Bottle delivery mechanism
l Clamp the bottles through the conveyor belts on both sides and transport them to the working surface of the conveyor;
l Sort out the bottles through different bottle turners;
l The conveyor belt complies with GMP and FDA standards and requirements and adopts flexible buffering to facilitate bottle turning;
l Single motor drives double pulley structure to ensure consistent speed of the two clamping belts.
Bottle discharging mechanism
l When the clamping belt sends out bottles, its speed is consistent with the speed of the main conveyor belt, and bottles will not fall over;
l The conveyor belt complies with GMP and FDA standards and requirements and adopts flexible buffering to facilitate bottle turning;
l Single motor drives double pulley structure to ensure consistent speed of the two clamping belts;
l The clamping belt speed is adjustable through frequency conversion.
Manufacturer
Yes we are
Oversea Service
Yes, offer
Original
China Guangzhou
MOQ
1 Set
Model
Customizable
