Integrated Equipment for Mascara Screw Cap Sealing and Capping

Integrated Equipment for Mascara Screw Cap Sealing and Capping

share

Integrated Equipment for Mascara Screw Cap Sealing and Capping

  • Detail
  • Parameters

Key attributes

driven type
Electric
packaging type
CANS, Bottles, Barrel, Foil, case
Voltage
220V 380V
Sealing Type
Heat Sealing
After-sales Service Provided
Video technical support, Field installation, commissioning and training, Online support
automatic grade
Automatic
packaging material
plastic, Metal, Glass, Wood
warranty
12 Monthes
Application
Food, Beverage, Commodity, Chemical, Machinery & Hardware
Weight (KG)
500
place of origin
Guangdong, China
brand name
TZ
key selling points
Easy to Operate
machinery test report
Provided
video outgoing-inspection
Provided
core components
PLC, Gear, Gearbox, motor, Bearing, Engine, Pressure vessel, Pump
Conveyor belt
Stainless steel or POM chain choose
Capping range
10~55mm (can be customized according to requirements)
Adapt to bottle height
50~300mm (can be customized
Capping speed
1000~6000 bottles/hour
Rated voltage
220V 380V
Power
1.8KW
Air source
06~0.8MPa
Bottle cap type
plastic, metal round cap, pump head cap, duckbill cap, etc.
After Warranty Service
Video technical support
Marketing Type
Ordinary Product

Packaging and delivery

Selling Units
Single item
Single package size
10X10X10 cm
Single gross weight
1.000 KG





Specification
Automatic linear capping machine/Eight-wheel capping machine/High-speed capping machine/Triger capping machine

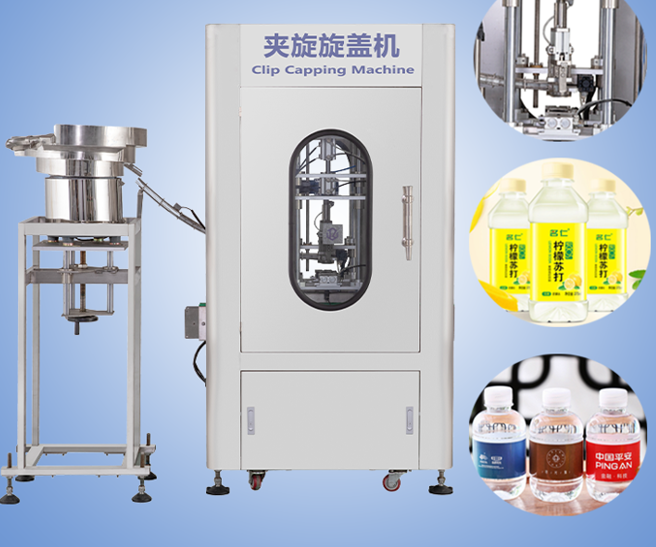

Equipment overview:This equipment is developed by our company with the introduction of foreign advanced high-speed rubbing principle and technology combined with many years of production experience. The equipment integrates automatic bottle feeding, automatic cap arranging, automatic capping, automatic capping, and automatic bottle ejection. It is stable and reliable in operation, simple and convenient to operate. It is the industry standard plastic cap and metal thread for food, beverage, etc. Round caps, etc., can be customized according to customers' bottle caps and requirements.
Technical Parameters:Capping method: 8 pairs of capping wheels to rubScrew cap range: φ10~ φ55mm (can be customized according to requirements)Adapt to bottle height: 50~300mm (can be customized according to requirements)Production capacity: 35~100 bottles/minRated voltage: 220V 50HZ, 380VWork rate: 2.5KWAir pressure: 0.6~0.7Mpa
Applicable bottle caps: according to the bottle type and cap provided by the customerIt can be used with other machinery on the same line, such as bottle washing machine, filling machine, capping machine, labeling machine, sleeve labeling machine, date stamping machine, sealing machine, sealing machine, etc. It is convenient to use and easy to operate.
Please provide your specific requirements and we will prepare the best solution for you as soon as possible. Contact freely with wechat or whatsapp 0086.13794308529.


Manufacturer
Yes we are
Oversea Service
Yes, offer
Function
Filling Capping/Sealing
Original
China Guangzhou
MOQ
1 Set
Model
Customizable
