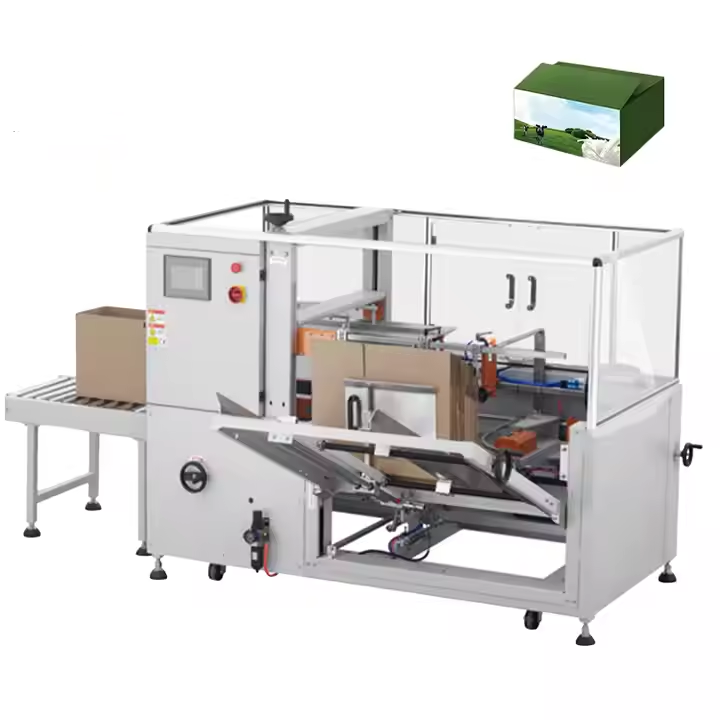

Factory Carton /Box Unpacking Machine High-Speed Automatic Carton Case Erector

Factory Carton /Box Unpacking Machine High-Speed Automatic Carton Case Erector

share

Factory Carton /Box Unpacking Machine High-Speed Automatic Carton Case Erector

  • Detail
  • Parameters

Key attributes

video outgoing-inspection
Provided
warranty
1 Year
machinery test report
Provided
key selling points
Easy to Operate
Packaging Type
Cartons
Voltage
220
automatic grade
Automatic
driven type
Electric
core components
PLC, Engine, motor
Packaging Material
Paper
application
Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles
type
Other
place of origin
Guangdong, China
Customized service
Customizable
dimension(l*w*h)
L2050*W1900*H1600mm
Applicable power supply
220V 50Hz
Unpacking speed
8-12 boxes/minute
Applicable cartons Max
L450*W400*H350mm
Applicable cartons Min
L200*W150*H100mm (minimum dimensions cannot appear at the same time)
Used tape
48/60/75mm (choose one to use)
Air pressure, air consumption
6kg/cm2, 450nl/min

Packaging and delivery

Selling Units
Single item





Product Features:

1.   This series of paper types has the main function of carton forming and back sealing.

2.   The cardboard storage method adopts vertical storage and can replenish the cardboard at any time (no need to stop the machine to replenish the boxes). It is suitable for packaging within the carton specifications and the same carton size at the same time. If the carton specifications need to be changed, manual adjustment is required (the adjustment only takes 3 to 5 minutes).

3.   This series adopts a rational design to synchronously absorb and form, and the bottom folding and back sealing are completed simultaneously at the same time.

4.   The mechanical performance is precise and durable, there is no vibration during operation, the operation is stable and the service life is long.

5.   Lightweight, high maneuverability, high speed and high efficiency.


Manufacturer
Yes we are
Oversea Service
Yes, offer
Original
China Guangzhou
MOQ
1 Set
Model
Customizable
