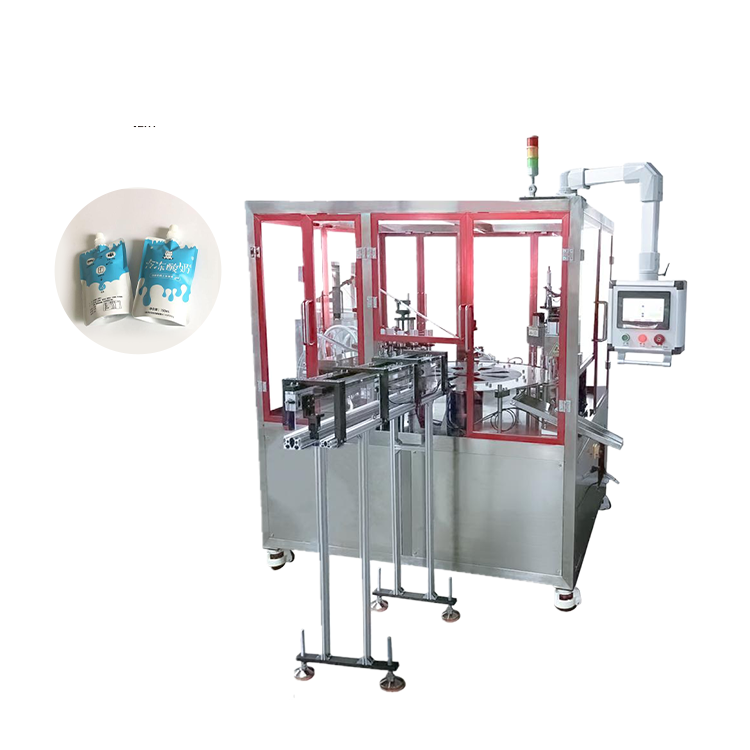

Working principle: manual bag placement - automatic filling - automatic capping - automatic capping - automatic bag discharging

Machine parameters Voltage 220V 50HZ

Machine power 5Kw Remarks

Production speed 30ml-100ml: 20-100 bags/min,

Within 500ml: 20-70 bags/min (standard packaging material, the number of heads can be customized according to production capacity)

Capping method Horizontal cap placement

Bottle discharging method Turntable bottle pusher

Filling machine system Filling method Gear pump/piston pump (specifically selected according to material)

The actual number of heads can be customized according to demand

Filling drive Yimi servo motor

Filling accuracy ±1%

Filling volume 100-1000ml (capacity can be customized according to demand)

Filling viscosity 12000CPS

Capping machine system Capping head number Customized according to customer production capacity

requirementsCapping drive Yimi servo motor

Main configuration Turntable power 750W Servo divider

Solenoid valve Yadek

Relay Schneider

PLC Imeisen

Touch screen Kunlun Tongtai

Photoelectric sensor Panasonic

Cylinder Domestic

Power supply Mean Well

Air switch Delixi

Cover vibration plate 1 set

Machine size mm about length 2500*width 2200*height 1900 actual custom design subject to

Machine net weight 350KG

Frame material 304 stainless steel

Material contact 316 stainless steel

Wheels Fuma wheel

Aluminum parts Aluminum plate anodized

Machine Feature:

1. The packaging process is fully automatic and requires no manual operation.

2. The contact parts of the materials are all made of SUS316L stainless steel, in line with GMP standards

3. Different filing devices can be selected according to the character of the filing materials.

4. Intelligent detection for bag filling and sealing.

5. Germany Siemens PLC system, France Schneider Electric System. Stable performance and durability.

6. Japan OMRON intelligent temperature control system, automatic sealing temperature compensation, temperature control accuracy. The seal is beautiful and generous.

7. The pneumatic originals of the whole machine are all selected from Taiwan Yadeke brand, with long working life and convenientMaintenance and replacement.

8.The filling part can be washed directly, and the power supply part should be avoided.
