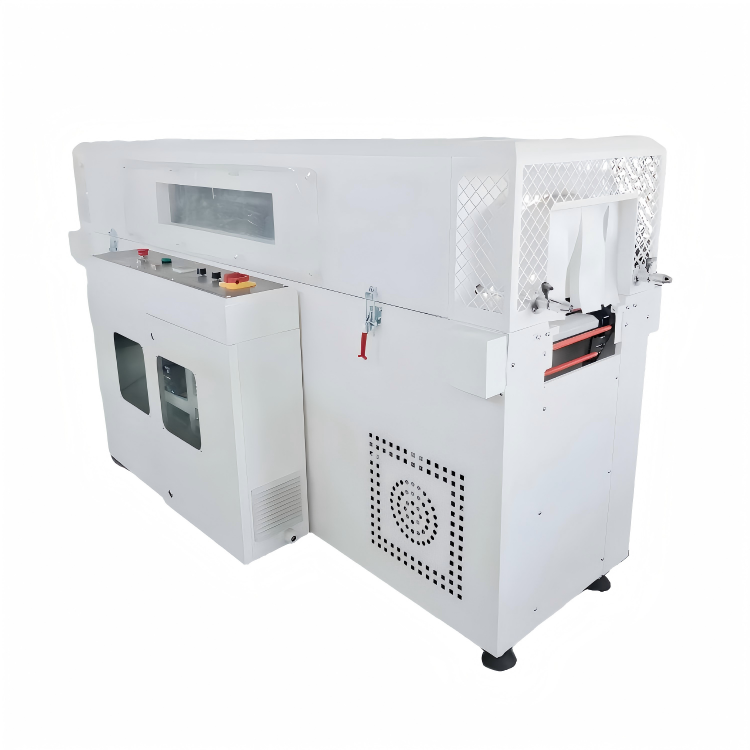

Automatic Heat Seal Shrink Wrapping Machine Automatic Side Sealer Shrink Pack Machines Sealer and Shrink Tunnel Automatic

Automatic Heat Seal Shrink Wrapping Machine Automatic Side Sealer Shrink Pack Machines Sealer and Shrink Tunnel Automatic

share

Automatic Heat Seal Shrink Wrapping Machine Automatic Side Sealer Shrink Pack Machines Sealer and Shrink Tunnel Automatic

  • Detail
  • Parameters

Automatic Heat Seal Shrink Wrapping Machine Automatic Side Sealer Shrink Pack Machines Sealer and Shrink Tunnel Automatic


Key attributes

automatic grade
Automatic
driven type
Electric
Sealing Type
Cold Sealing
Voltage
AC220V 50Hz
packaging material
Plastic, Paper, Metal, Glass, Wood
Application
Food
After-sales Service Provided
Video Technical Support, Online support, Field installation, commissioning and training
warranty
1 Year
core components
PLC, Motor, Engine
key selling points
Energy saving/Easy to Operate
packaging type
Cans, Cups
machinery test report
Provided
video outgoing-inspection
Provided
place of origin
Guangdong, China
Weight (KG)
120
brand name
OEM
dimension(l*w*h)
1800*880*1100 mm
Power
20 KW
Equipment appearance dimensions
1800*880*1100 mm
Conveying speed
0-15m/min
Maximum packaging size
L+H≤500mm (H<180mm)
Product name
Automatic edge sealing film sealing and cutting machine
Machine weight
120 kg
Applicable shrink film
POF.PE
Power supply
220V/50-60HZ



电热收缩炉 (5).png

电热收缩炉 (1).png

电热收缩炉 (3).png


Product Overview
Low-heat shrink machineThe power of PE shrink machine is generally around 20-40KW, and the set temperature is also relatively high, generally around 180°-220°. The settings vary according to the thickness of the material, the speed of conveying the product, the size of the air volume, and the temperature. If the product is not resistant to high temperatures, low temperatures can be used and thin shrink film can be used.

If the shrink film is thick, the temperature needs to be increased, and the power of the shrink machine needs to be larger. The faster the product is conveyed, the higher the temperature will be, and vice versa. The higher the air volume, the lower the temperature will be, and vice versa. The power of POF and PVC shrink machines is generally 5-20KW, and the temperature is generally set at around 140-°160°. The adjustment is basically the same as that of PE shrink machines.
Manufacturer
Yes we are
Oversea Service
Yes, offer
Function
shrinking
Original
China Guangzhou
MOQ
1 Set
Model
Customizable
