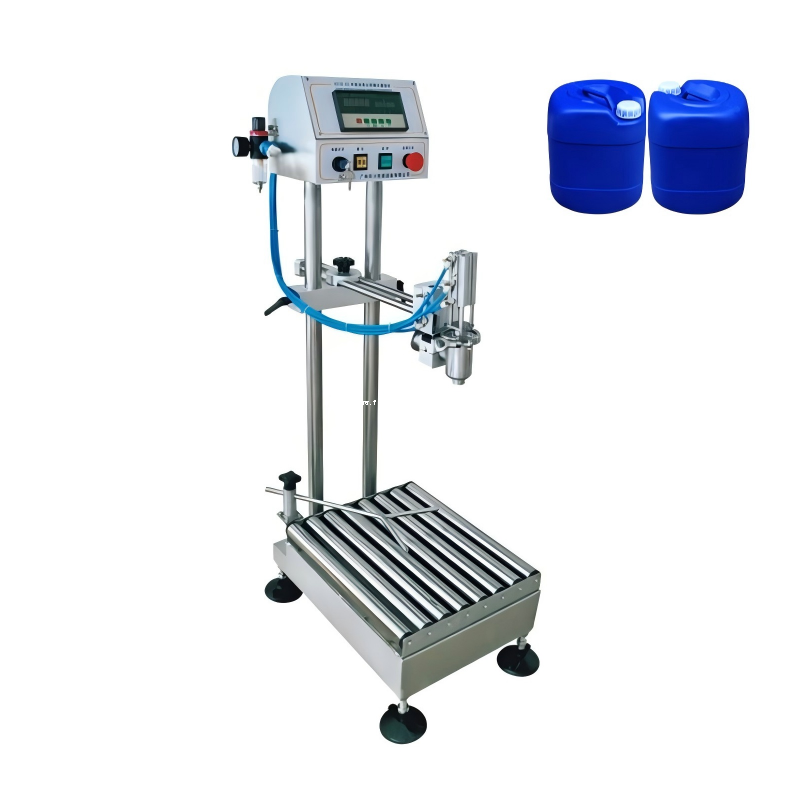

Single Head High Precision Volumetric Liquid Paste Filling Machine Electric Driven with Motor Engine & Pump Easy to Operate

Single Head High Precision Volumetric Liquid Paste Filling Machine Electric Driven with Motor Engine & Pump Easy to Operate

share

Single Head High Precision Volumetric Liquid Paste Filling Machine Electric Driven with Motor Engine & Pump Easy to Operate

  • Detail
  • Parameters

Single head volumetric liquid paste filling machine pneumatic liquid filler

单头称重灌装  (6).png

Key attributes

key selling points
Easy To Operate
Driven Type
Electric
voltage
220 V
automatic grade
Manual
Packing Type
Bottles
warranty
1 Year
Filling Material
Liquids
core components
Pump, Engine, PLC, Motor, Gearbox, Other
video outgoing-inspection
Provided
machinery test report
Provided
place of origin
Guangdong, China
weight (kg)
30
brand name
JHC
dimension(l*w*h)
610*530*1450mm
Product name
liquid paste filling machine pneumatic liquid filler
Keywords
liquid filling machine
Type
Filling Machine
Filling Material
Powder
Machinery Capacity
Other
Weight
70
Filling Accuracy
99.5%


单头称重灌装  (5).png


Products Description
Filling Weight
2-30kg
Power supply
220±10%
Production speed
50-150 barrels/hour
Power
100W
Import Pressure
0.2-0.25mpa
Accuracy
≤0.3%
Dimensions
610*530*1450
Weight
70kg
(Above is the standard model technical parameters, other special requirements and functions, can be customized!)

Introduction

1.Imported sensors, stable use, long life

2.Computer automatic control weighing, high precision

3.Two-speed filling (fast filling at the beginning, close to the target amount of slow filling) to ensure the filling accuracy

4.Vacuum pumping system, to ensure that no drip

5.Automatic socket function, save time, labor

6.After special treatment, high temperature liquid, corrosive liquid, high viscosity liquid can be filled.

Manufacturer
Yes we are
Oversea Service
Yes, offer
Function
Filling
Original
Guangzhou
MOQ
1 Set
Model
Customizable
