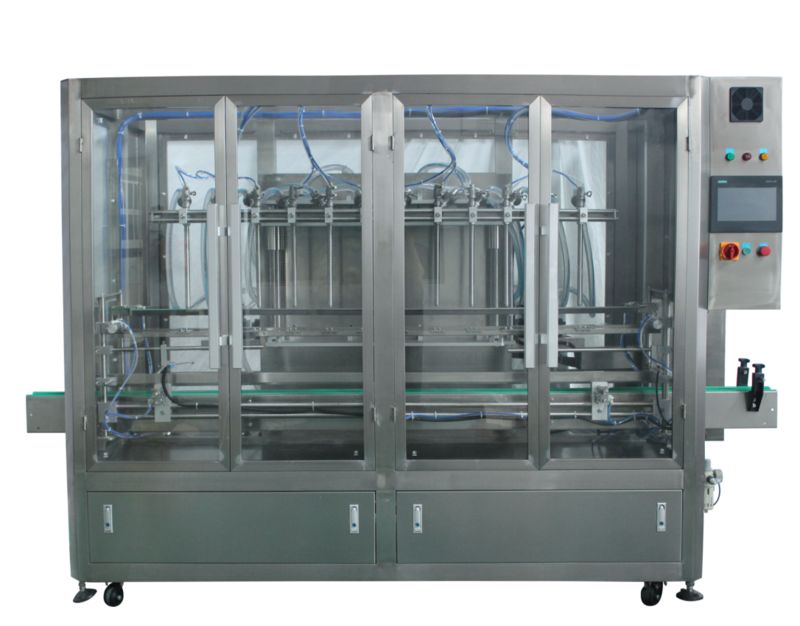

Automatic Baby Food Filling Machine Can Food Filling Machine

Detail

Parameters

Key attributes

packaging type

Barrel, Bottles, CANS

warranty

1 Year

driven type

Electric

Voltage

220V 380V

automatic grade

Automatic

packaging material

Glass, Other, Plastic, Wood

application

Beverage, Chemical, Food

filling material

Juice, Milk, Oil, Water

filling accuracy

99.5%

Weight (KG)

550

place of origin

Guangdong, China

brand name

Tengzhuo

dimension(l*w*h)

customization

key selling points

Energy saving

machinery test report

Provided

video outgoing-inspection

Provided

core components

Engine, motor, PLC

filling nozzle

6, 4

keywords

wine drinks liquid bottling filling cap and label machine

Function

filling materail

Suitable for packaging

bottles/cans

Type

Automatic

Guangzhou facotry

Guangzhou machinery manufactory

Advantage

Durable/high effect

Fuction

Selected by the customer, can be customized

more Function

Would Be Customized

Packing type

Would Be Customized

Marketing Type

Ordinary Product

Packaging and delivery

Selling Units

Single item

(1)Applicable bottle: Customized according to customer products(2)Filling volume: 100-1000ml(can be customized as needed)(3) Filling heads: customized according to production requirements(4)Filling accuracy: 99.5%(equivalent filling)(5) Production speed: customized according to customer production requirements (according to 6 head filling machine, filling 500ml as an example, speed is about 1000-1200 bottles per hour)(6)Air pressure: 0.6-0.8mpa(7)Gas consumption: 200 L/min(8)power supply: 380v/50hz, three-phase five-wire system(9) Full line power: 25KW

1.Bottle washer using flip-type bottle washing, high-pressure water flushing, the foreign body inside will be washed away, and then the high-pressure gas will evaporated the bottle of moisture. Drying using high temperature drying, temperature can rise up to 280 degrees, can effectively evaporate the water of the bottle, to achieve high temperature sterilization effect.

Filling machine using servo drive piston quantitative filling, no leakage, pollution-free, maintenance is simple, easy to adjust, high filling accuracy, filling stability.

Thread cap locking adopts non-trace threaded locking knife, cap locking effect good, no scratches, easy to open. Code using laser Code, environmental protection, production date never fade, simple maintenance

Labeling using servo motor and imported electric detector, accurate marking, labeling accuracy is high, smooth and none wrinkle

2. The whole line using food grade stainless steel production, piping using stainless steel wire hose, cleaning and disinfection convenient, in line with the national food machinery, food hygiene regulations and requirements. The overall use of Plexiglas hood design, to prevent impurities into the filling materials, safety and hygiene.
